21 December 2010

Come and help, Santa

I have taken a few snaps to show the process involved in attaching the headliner, as that seems to be all I've managed to do lately. The first step is to survey the deckhead and decide where the velcro needs to go. I have had to allow for lots of bumps, remember to allow for wrapping the vinyl-backed foam around the edges of the sheet, and work out how much you need to hold it all up. I use 2" masking tape to get a good visual, then mark around the edges and measure it all.

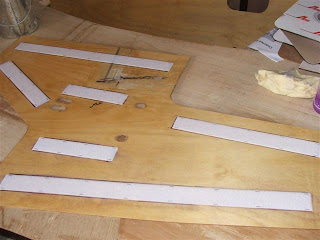

Next the hook side tape is stuck on to 2" ply strips, stapled and the staples bent over to ensure everything stays together. Then these strips are used to mark the position on the headliner ply, which is then given a sand to key up for the loop velcro.

The loop velcro then gets stuck down and stapled, staples bent over and we are nearly there.

The hook strips are then pushed on to the loop and we are ready to glue it up. I put dabs of epoxy every 20-30 mm along the hook strips and push the whole headliner up into place. Toms are used with ply offcuts to spread the loads and once the epoxy hardens, we can peel the headliner away from the hook strips and proceed to add the foam-backed vinyl. Done! It is quite a simple process, the most onerous part being bending the staples over to ensure a good, solid bond to the plywood.
